SPECIFICATIONS

Brand Name: YTYIN

Origin: Mainland China

Voltage: 48V

Foldable: No

Wattage: 251 - 350w

Power Supply: lithium battery

Wheel Size: 26“

Frame Material: Aluminum Alloy

Place of Origin: Jiangsu, China

Model Number: D03007

Gears: 7Speed

Range per Power: 31 - 60 km

Frame Material: Aluminum Alloy

Wheel Size: 26"

Max Speed: 30-50Km/h, 40km/h

Voltage: 48V

Power Supply: Lithium Battery

Braking System: Disc Brake

Torque: 50-60 Nm

Charging Time: >3 hours

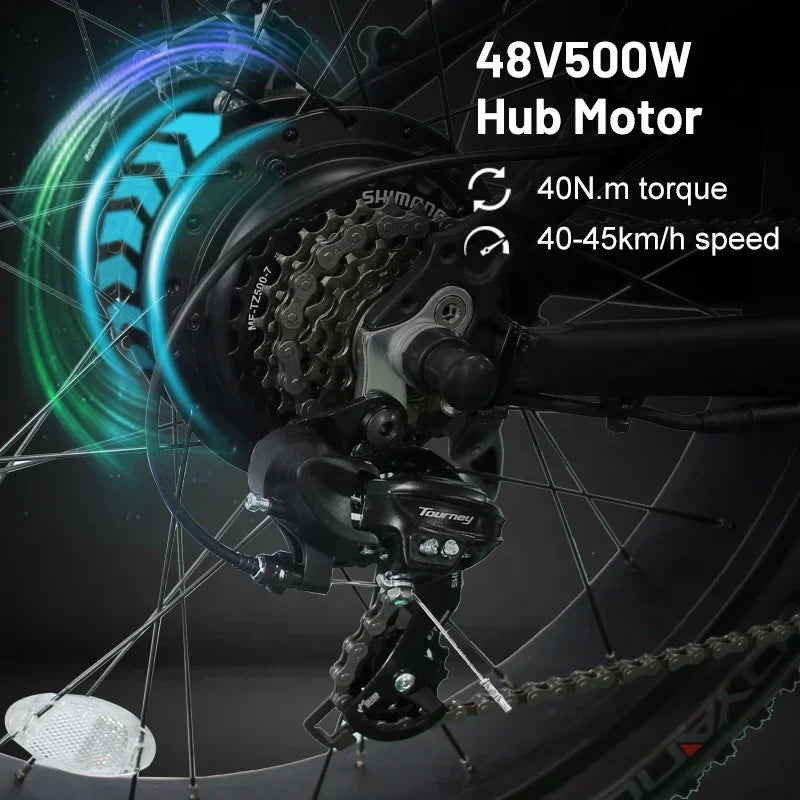

Motor position: Rear Hub Motor

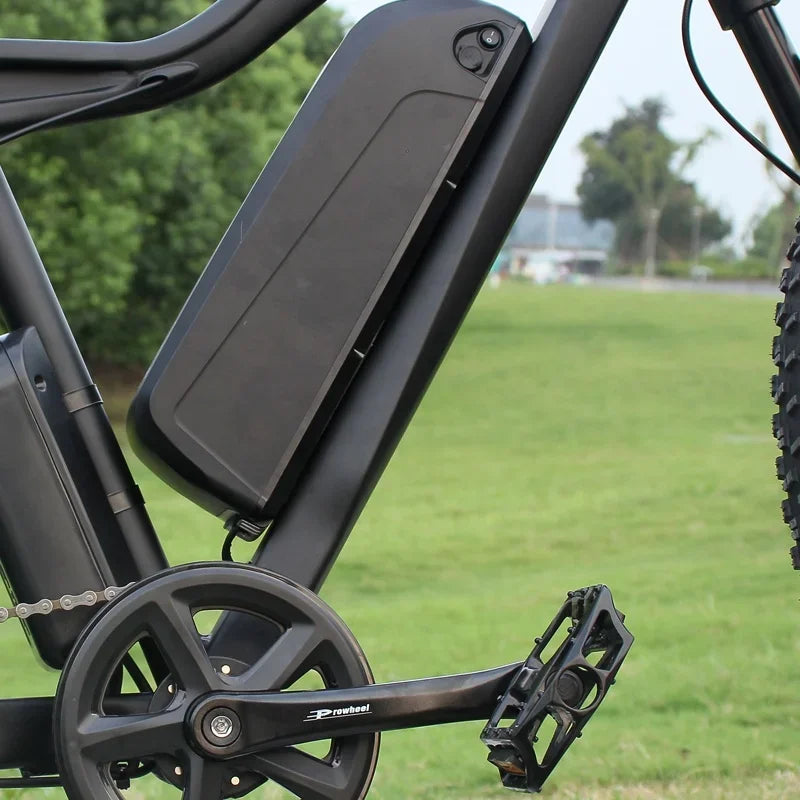

Battery Position: Down Tube

Battery Capacity: 13AH

Display: LCD sw900 display

Throttle: Twist throttle

Specification

Rim	26 x 4.0inch 36H Aluminum rim	LCD	LCD display with USB, range, distance,time , battery indicator, speed and so on.
Controller	48V 18A Smart intelligent controller	PAS	12 magnets pedal assistant
Frame	26" AL-ALLOY frame AL6061	Fork	Suspension front fork adjusted Locked

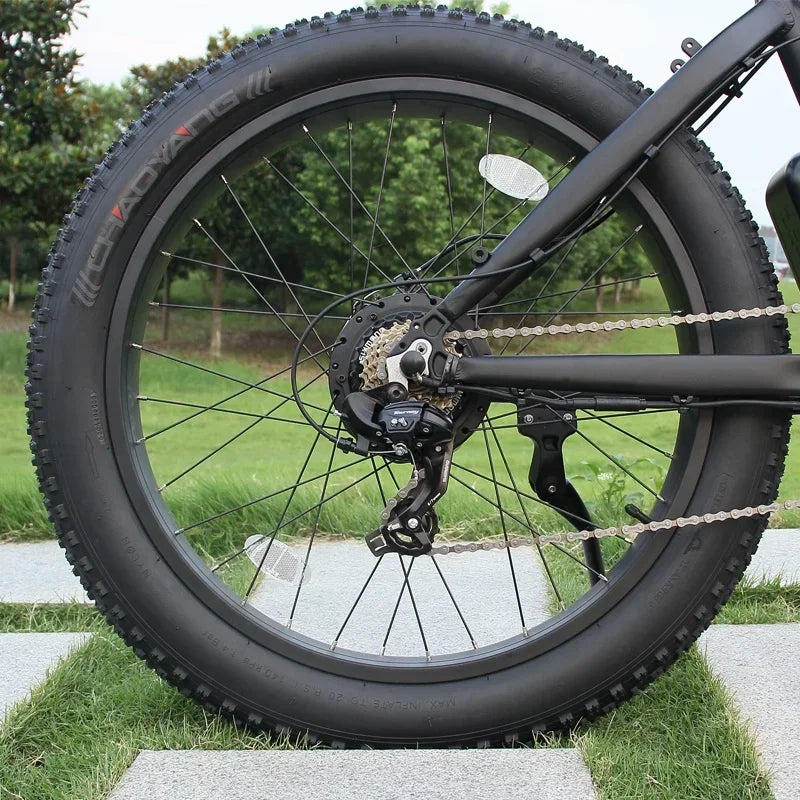

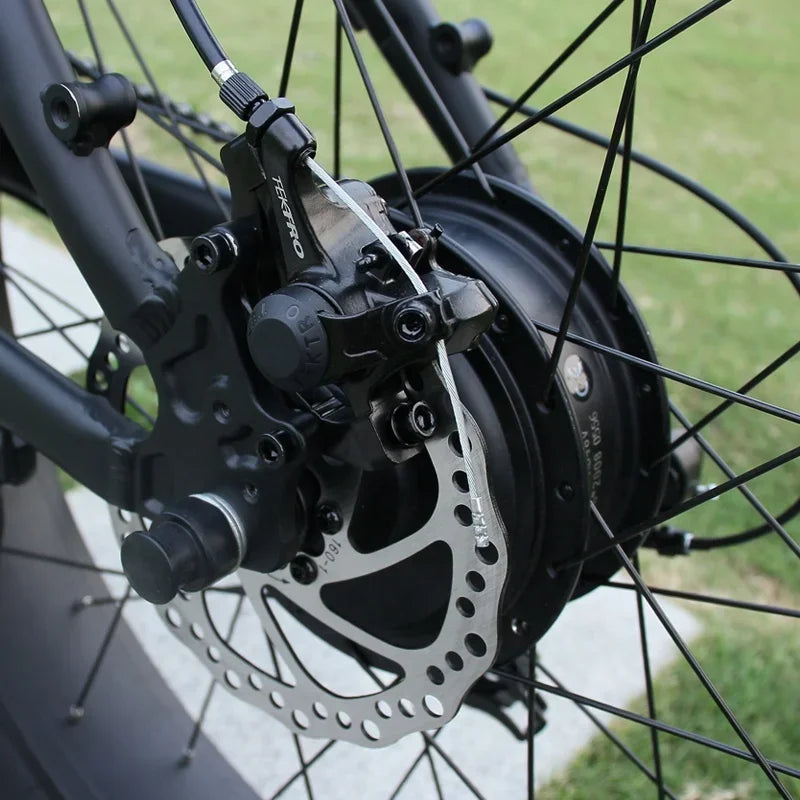

Tyres	26"×4.0 Slide-proof tyres (CHAO YANG brand)	Front/Rear brake	Disc brake TEKTRO 160mm
Rear Derailleur Lever	Outer 7 speed (Shimano brand)	Brake levers	Brake levers (Wuxing brand)
Chain	7 speed chain (KMC brand)	Crankset	42-tooth double-interchangeable steel-tooth aluminum handle plastic shell (PROWHEEL)
Seat	Thickened soft leather removable seat (Justek brand)	Handle bar	31.8 AL-ALLOY AL6061 (Promax brand)
Stem	AL-ALLOY AL6061 foldable	Seat post	AL-ALLOY 30.9 AL6061

Product Description

Packing & Delivery

Packing size:155x33x88cm Loading Capacity:20GP container:50 sets 40HQ container: 140sets Net weight:31KG Gross weight:35KG

Company Profile



Changzhou Ncyclebike Co.,Ltd. is a professional manufacturer of Electric bike kits, integrating development and production together. Our main products include hub motor, electric bike kits, lithium battery, electric bicycle and related products. Our company was established in 2016, located near Shanghai, we enjoy convenient water, land and air transportation. Ncyclebike will initiate the second phase of our development strategy. Our company regards"reasonable prices, efficient production time and good after-service" as our tenet. We hope to cooperate with more customers for mutual development and benefits.

Exhibition

Certifications

Buyer Reviews

FAQ

Q1: Can we order a sample? A: Yes. The sample order can be 1-10 PCS. Q2: What color we can choose for a sample and the regular orders? A: You can choose any color for your orders even if a sample order for only 1 PC. This is one of our advantage. Q3: Do you have some products in stock for sample orders? A: Sorry. We never make any products in stock. Because it is not good to the battery life if we put the sample for a long time. We should make sure all the products for our customers are new. Q4: So what is your delivery time? A: Normally 10 days for a sample order and 30-35 days for a regular order. Q5: Can we ask different options for your electric bicycle? A: Yes. Please negotiate with us. Q6: Can I make a mixed order to get the MOQ? A: Yes. You can mix any items. Q7: What about your quality? A: We cannot say too much with only words. If you need, you can ask by email for the photos of quality controlling. And also welcome to our factory to check. Generally speaking, if you buy our samples, you will never place the regular order to other factories. Q8: What is your warranty policy? A: Please ask us for the warranty documents.
